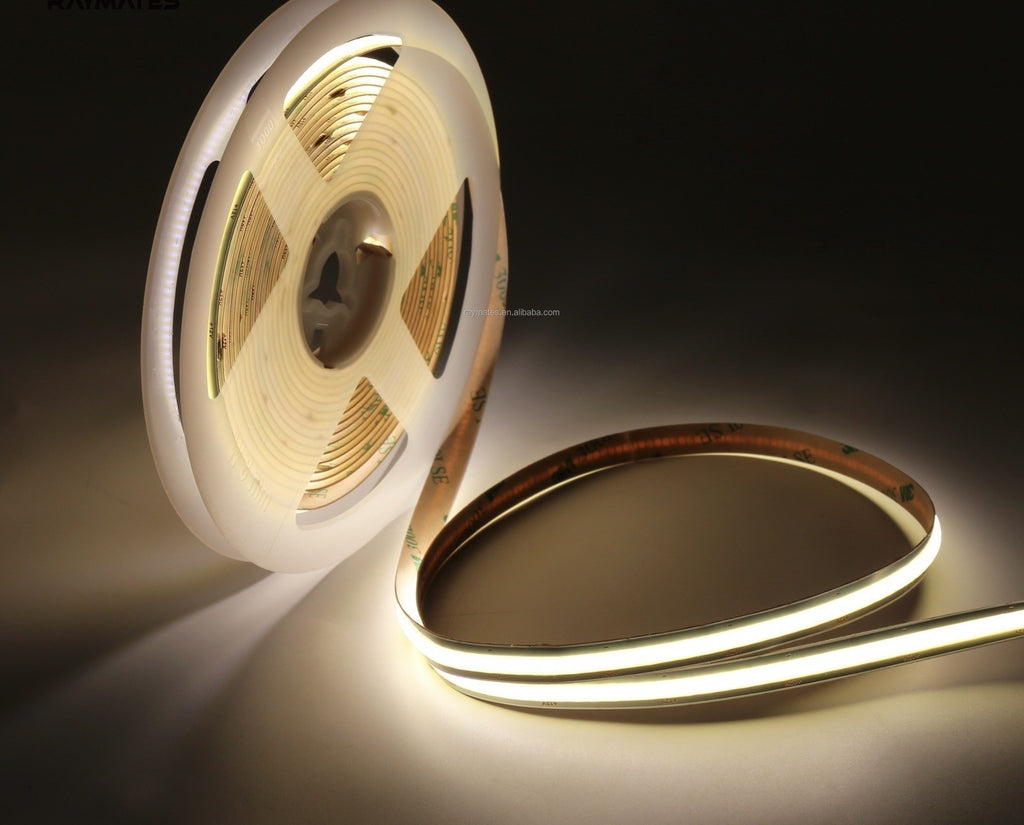

12v Free cutting COB strip natural white - CUT & SOLDER ANYWHERE ALONG THE STRIP!
Leading12-COB-FC - An expertly designed lighting solution. With a density of 528 LEDs/m, this range provides full, uniform illumination.
The unique free cutting feature allows for easy customisation, making this range the ideal choice of strip for intricate, cut-to-measure projects.
High-end, world-class lighting - Ideal for both residential and commercial applications - The right choice for all visible areas such as wall, ceilings & interior vehicle lightin
F.A.Q
Q. Is 12v Free cutting COB strip priced per metre?
A. Yes, 12v Free cutting COB strip is priced per metre, add as much as you need into your cart for check-out.
Q. If I need 4 metres will this come as 4 x 1 mere lengths or one length of 4 metres.
A. If you select 4 metres this will be dispatched as 1 x 4 metre piece of strip, unless you let us know otherwise.
Q. Does the strip come with cable tails?
A. If you select 5 metres of strip - this will be dispatched as 1 x 5 metre reel with a 2 metre cable tail soldered.
If you select any other quantity and require us to solder on the cable tails, you will need to select a solder option (menu in customised LED strip) which includes up to 2 metres of cable. If you need longer cable tails, please advise.
Q. Can I cut the strip down?
A. Yes, you can cut anywhere along the strip.
g.
| LED strip light specification |
UL, TUV CE, CB Approved. |
|
| 12v Free cutting COB strip natural | Colour temperature: Natural white 4000k |
|
| Part number |
LS12-COB-528-NW-FC |
|
| Brightness level |
High brightness. |
|
| Recommended installation | Dotless LED strip for use on visible areas such as walls & ceilings. | |
| IP rating | IP20 | |
| Lumen Output | ||
| Dimmable |
Yes. Compatible with various control systems. Options:
|
|
| Wattage | 10 w/m. | |
| Voltage | 24V. Constant voltage. | |
| LED quantity | 528 LEDS /m. | |
| Width of strip |
8mm. |
|
| Backing tape | Heavy duty 3M. Secure neatly onto clean surface. | |
| Maximum linear run length capacity |
5 metres powered from one end. 10 metres powered from both ends or from the centre. |
|
| CRI (Colour rendering Index) | High: Rendering colours more realistically. | |
| Lifespan | Up to 50,000 hours. | |
| Cut points on the strip |
|
|
| Warranty | 5 years. |
Ordering Free cutting COB strip:Purchase Free cutting COB strip lights by the metre & select required quantity e.g. 1,2,3,4 metres of strip. If you need soldered cable tails click on bespoke options below. Note: When ordering in multiples of 5 - Each 5 metre reel includes a 2 metre soldered tail and protective heat shrink. For example, if you order 25 metres (select quantity 25 into cart) - You'll receive this as 5 reels of 5 metres, each with 2 metre tails soldered. For alternative measurements such as 4 metre pieces of strip, cut to measure & further customisation, select your required quantity and explore bespoke options: |
Shop bespoke options here
SUPPORT:
| Required components |
Soldered 2 core cable tail. Always select the correct cable for your project ensuring efficient current flow & optimal performance. Quick calculation:
1. Multiply the amount of metres of strip by the wattage: e.g. 5m strip (@10w/m) 5 x 10 = 50 watts 2. Now divide 50 by 24 (24v)= 4.166A 0.5mm cable capacity = 3A 0.75mm cable capacity = 6A
|
| Optional compatible components | |
| Smart controller |
Wall controller - Set scenes, dim the strip, turn on/off. Hand held remote - Set scenes, dim the strip, turn on/off. Wifi controller - For use with smart phone. Set various scenes, dim the brightness, turn on/off. |
| Aluminium housing |
House LED strip in profile - Diffusion of light, heat dissipation & professional finish. |
SPECIFICATION:
Priced by the metre for a maximum single run length of 5 metres - (If longer run lengths over 5 metres are required, contact us for advice on how best to install this).
LED strip is dispatched as one continuous length as per order quantity - Uncut, unless otherwise stated.
Cut to measure with soldered cable tails - Speak with our team to request a bespoke quotation. Alternatively, leave details and measurements for cut to measure LED strip & required length of soldered cable tails in the special instructions box provided at checkout (remember to select the correct cable & solder operation before completing your order).
12v Free cutting COB strip natural
