24v COB LED strip warm | Leading24-COB | 10w/m | 480 LEDS/m - Dotless

24v COB LED strip warm  - The right choice for all visible areas such as walls and ceilings.

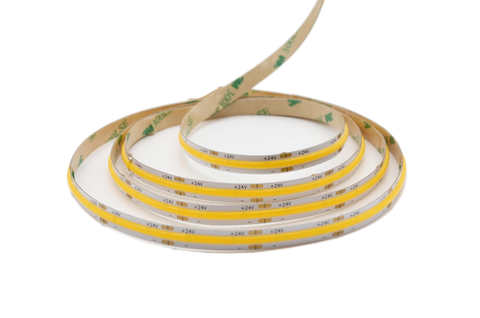

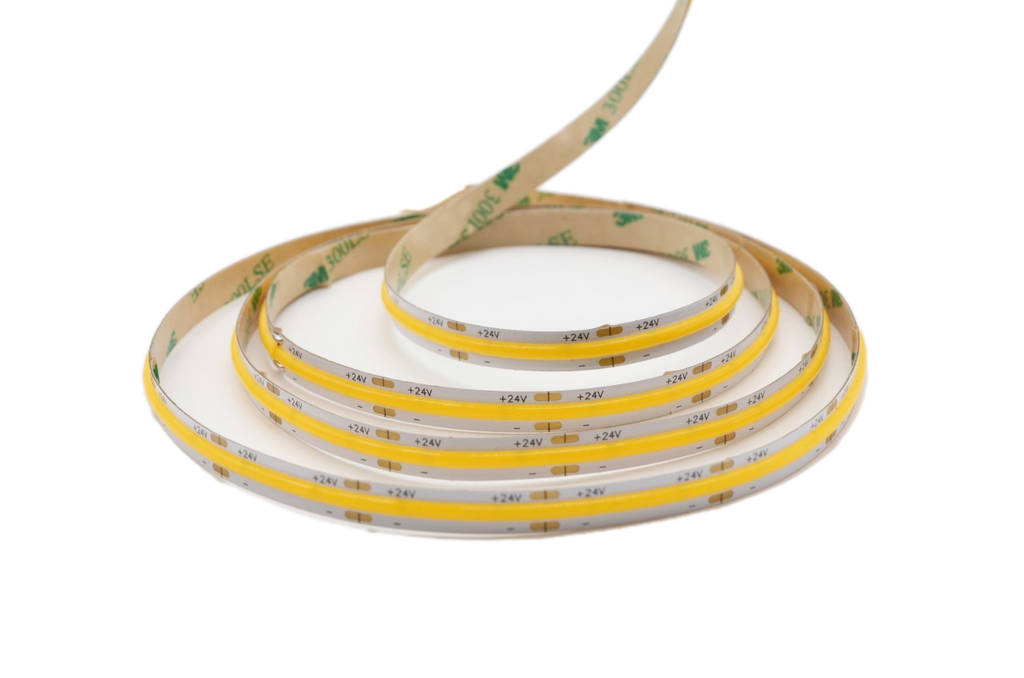

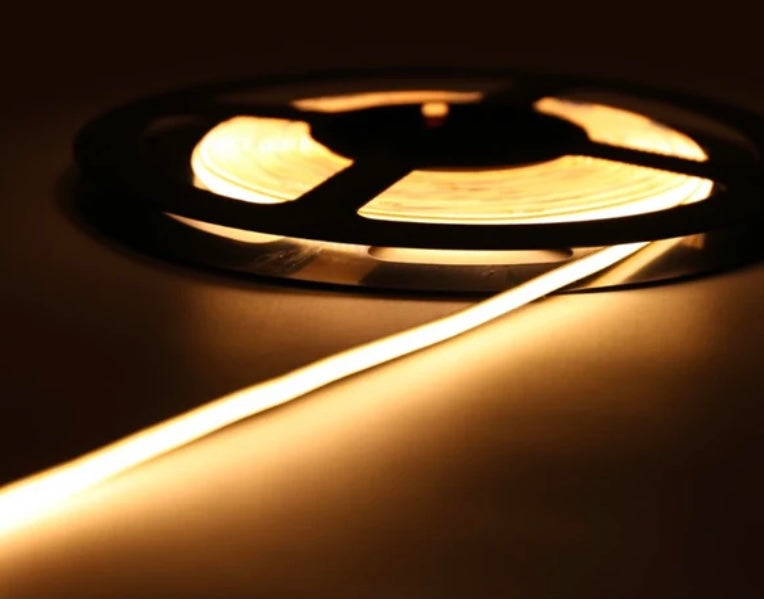

Leading24-COB  - Completely dotless, dimmable COB strip. A high-end, world-class lighting solution designed with 480 LEDs/m for full coverage, superior brightness and even illumination.

Customisable to suit all Domestic | Commercial projects.

Available in warm, natural, cool white & RGB colour changing

F.A.Q

Q. Is 24v COB LED strip priced per metre?

A. Yes, 24v COB LED strip is priced per metre, add as much as you need into your cart ready for check-out.

Q. If I need 4 metres will this come as 4 x 1 metre lengths or one length of 4 metres.

A. If you select 4 metres this will be dispatched as 1 x 4 metre piece of strip, unless you let us know otherwise.

Q. Does the strip come with soldered cable tails?

A. When ordering multiples of 5 metres, this product includes cable tails that are soldered. For instance, if you order 20 metres, you will receive 4 x 5 metre reels, each with a 2 metre cable tail already soldered at no extra cost.

For quantities less than a 5 metre reel, select the soldered cable tail onto LED strip light option, via the bespoke options link below, this includes up to 2 metres of cable soldered onto your LED strip light. For longer cable tails, please notify our team.

Q. Can I cut the strip down?

A. Yes, you can cut the strip along the cut points every 50mm.

Shop bespoke options here

SUPPORT:

LED strip light specification	UL, TUV CE, CB Approved.
24v COB LED strip warm	Colour temperature: Warm white 3000k
Part number	LS24-COB-480-WW
Brightness level	High brightness.
Recommended installation	Dotless LED strip for use on visible areas such as walls & ceilings.
IP rating	IP20
Lumen Output	1029 Lumens /m.
Dimmable	Yes. Compatible with various control systems. Options:  Utilise our selection of wireless wall/hand held smart controllers. Dim the strip down, turn on/off, set scenes for various areas.  Triac mains dimmable driver for use with leading and trailing edge TRIAC dimmers.
Wattage	10 w/m.
Voltage	24V. Constant voltage.
LED quantity	480 LEDS /m.
Width of strip	8mm.
Backing tape	Heavy duty 3M. Secure neatly onto clean surface.
Maximum linear run length capacity	5 metres powered from one end. 10 metres powered from both ends or from the centre.
CRI (Colour rendering Index)	High: Rendering colours more realistically.
Lifespan	Up to 50,000 hours.
Cut points on the strip	Every 50mm - cut to measure.
Warranty	5 years.

Select compatible power supply (LED driver) based on length of LED strip light.	(NB: When sharing a power supply between multiple lengths of LED strip, do not exceed the maximum load of the power supply)
Up to 1 metre	20W-24V
1.5m - Max load 2 metres	50W-24V
2.5m  - Max load 5 metres	75W-24V
5.5m - Max load 8 metres NB: Maximum single run length of LED strip - 5 metres.  Power additional lengths separately when using a shared power supply.	100W-24V
8.5m - Max load 12 metres.  NB: Maximum single run length of LED strip - 5 metres.  Power additional lengths separately when using a shared power supply.	150W-24V
12.5m - Max load 16 metres. NB: Maximum single run length of LED strip - 5 metres.  Power additional lengths separately when using a shared power supply.	200W-24V
16.5 metres - Max load 20 metres NB: Maximum single run length of LED strip - 5 metres.  Power additional lengths separately when using a shared power supply.	320W-24V

Required components

Soldered 2 core cable tail. Always select the correct cable for your project ensuring efficient current flow & optimal performance.  Quick calculation:  1. Multiply the amount of metres of strip by the wattage: e.g. 5m strip (@10w/m) 5 x 10 = 50 watts  2. Now divide 50 by 24 (24v)= 2.083A 0.5mm cable capacity  = 3A 0.75mm cable capacity = 6A In this example - 0.5mm cable is the suitable 2 core cable option for cable tails up to 3m in length, with the recommendation to use 0.75mm cable for longer required cable tails ensuring more efficient current flow, optimal performance & preventing voltage drop.  2 Core cable



Optional compatible components
Smart controller	Wall controller - Set scenes, dim the strip, turn on/off. Hand held remote - Set scenes, dim the strip, turn on/off. Wifi controller  - For use with smart phone. Set various scenes, dim the brightness, turn on/off.
Aluminium housing	House LED strip in profile - Diffusion of light, heat dissipation & professional finish.



SPECIFICATION:

 Priced by the metre for a maximum single run length of 5 metres -  (If longer run lengths over 5 metres are required, contact us for advice on how best to install this).

 LED strip is dispatched as one continuous length as per order quantity  - Uncut, unless otherwise stated.

 Cut to measure with soldered cable tails -  Speak with our team to request a bespoke quotation. Alternatively, leave details and measurements for cut to measure LED strip & required length of soldered cable tails in the special instructions box provided at checkout (remember to select the correct cable & solder operation before completing your order).





Stunning media unit underway - dimming the strip down via wall controller.



Enrich your area with Leading24-Cob.









Dimmed down via wireless wall controller. Part number:

Part number: WS-SC-001-W

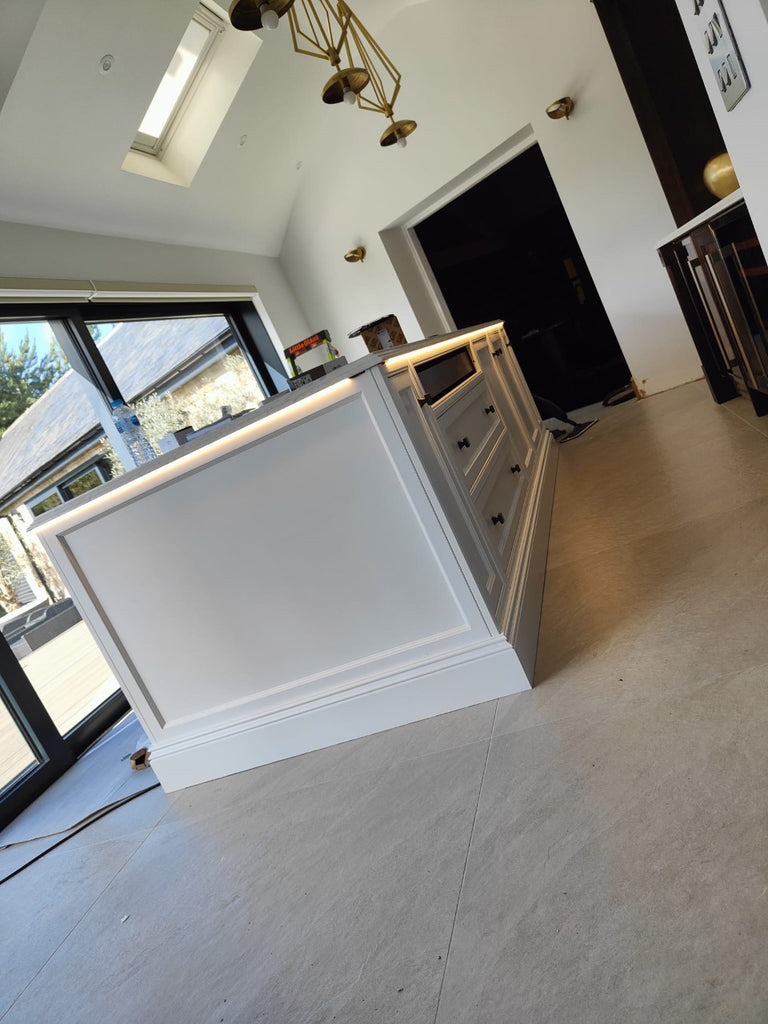

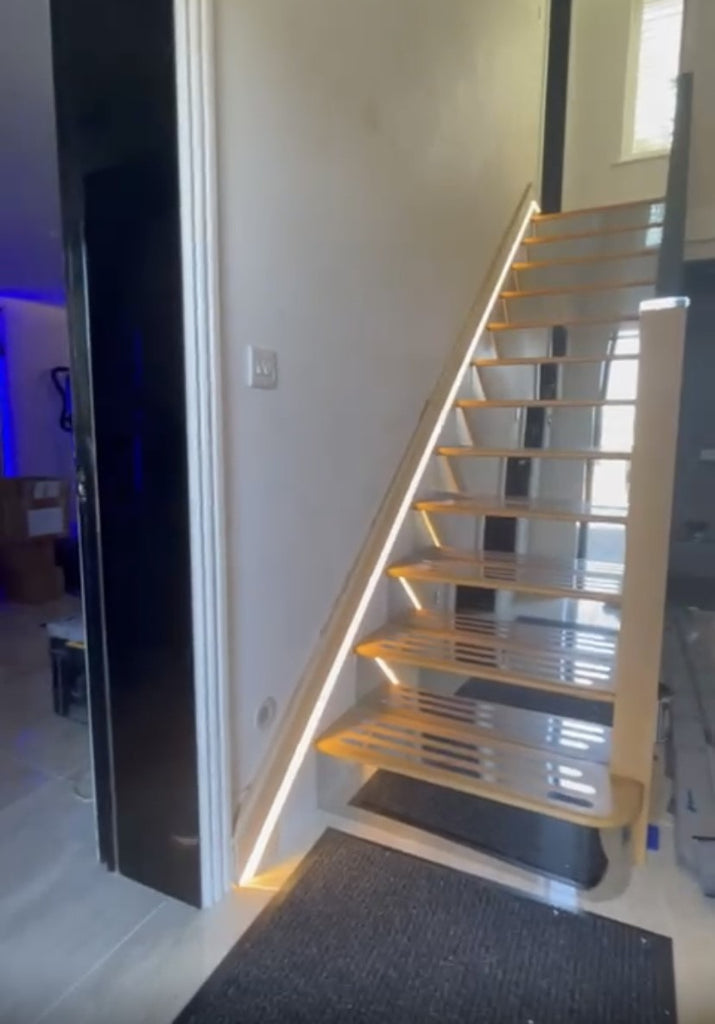

Impressive installation of warm white COB strip, utilising versatile floor profile for its slimline effect. Leading L.E.D part number: LS24-COB-480-WW

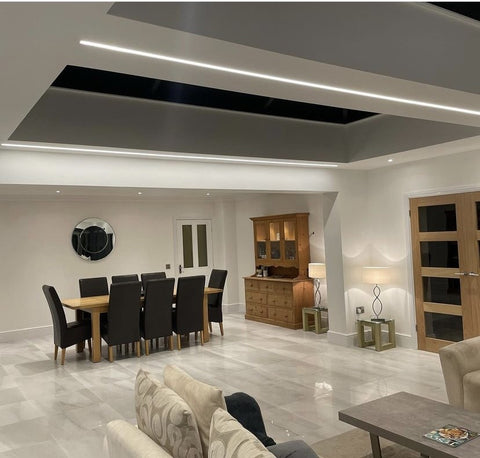

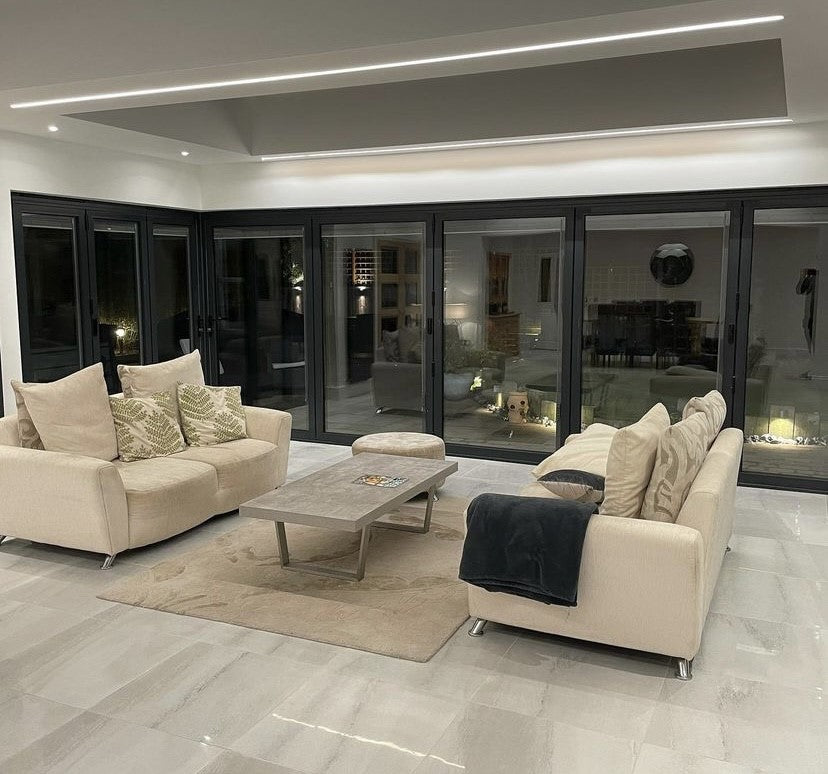

Impressive installation of warm white COB strip, utilising plaster in profile for a smooth, slick finish. Leading L.E.D part number: LS24-COB-480-WW











Video clip demonstrating seamless lighting using LS24-COB-480 - Housed inside plaster in profile, complete with opal diffuser - Designed for walls and ceilings. Dimming the strip using single colour dimming components.
