LED Strip for longer run lengths warm
Do you have a large LED strip light project? The solution - Leading24-pro.
Leading24-pro offers superb functionality when it comes to longer run lengths of LED strip lighting - the right choice of strip for larger LED installations within the home theatres, hotels, bars, restaurants and other commercial settings.
Constructed with 3OZ PCB board and IC integration - this range ensures constant voltage along the strip.
F.A.Q
Q. Is LED Strip for longer run lengths priced per metre?
A. Yes, LED Strip for longer run lengths is priced per metre, add as much as you need into your cart ready for check-out.
Q. If I select 12 metres of strip into my cart will this come as 12 x 1 metre lengths or one length of 12 metres?
A. If you select 12 metres this will be dispatched as 1 x 12 metre piece of strip, unless you let us know otherwise.
Q. Does the strip come with soldered cable tails?
A. When ordering multiples of 20 metres, this product includes cable tails that are soldered. For instance, if you order 40 metres, you will receive 2 x 20 metre reels, each with a 2 metre cable tail already soldered at no extra cost.
For quantities less than a 20 metre reel, select the soldered cable tail onto LED strip light option, via the bespoke options link below, this includes up to 2 metres of cable soldered onto your LED strip light. For longer cable tails, please notify our team.
Q. Can I cut the strip down?

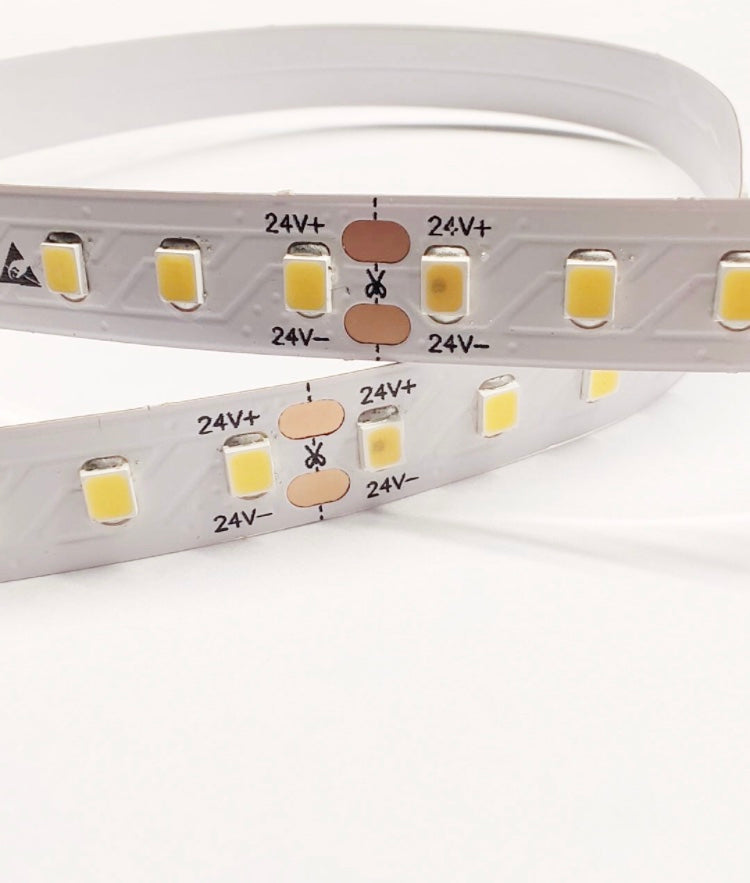

A. Yes, you can cut along the cut points on the strip every 50mm.
Shop bespoke options here
SUPPORT:
Designed to power from one end for up to an impressive 20 metres in one linear length or, if required cut to measure with link cables soldered to accommodate curves and right angles.
Featuring high lumen output for superior brightness, fully dimmable & minimal spotting when diffused in profile.
Customisable to suit any Domestic | Commercial project.
| LED strip light specification |  |
|
| LED Strip for longer run lengths warm | Colour temperature: Warm white 3000k |
|
| Part number | LSP24-120-WW | |
| Brightness level |
High brightness. |
|
| Recommended installation | Domestic & Commercial installation for LED strip lengths over 5 metres up to 20 metres. | |
| IP rating | IP20 | |
| Lumen Output | 1056 Lumens /m. | |
| Dimmable |
Yes. Compatible with various control systems. Options:
|
|
| Wattage | 9.6 w/m. | |
| Voltage | 24V. Constant voltage. | |
| LED quantity | 120 LEDS /m. | |
| Width of strip |
10mm. |
|
| Backing tape | Heavy duty 3M. Secure neatly onto clean surface. | |
| Maximum linear run length capacity | 20 metres. | |
| CRI (Colour rendering Index) | High: Rendering colours more realistically. | |
| Lifespan | Up to 50,000 hours. | |
| Cut points on the strip | Every 50mm - cut to measure. | |
| Warranty | 5 years. |
| Select compatible power supply (LED driver) based on length of LED strip. Max run length of strip in one linear length 20 metres. | (NB: When sharing a power supply between multiple lengths of LED strip, do not exceed the maximum load of the power supply) |
| Up to 1 metre |
|
| 1.5m - Max load 2 metres |
|
| 2.5m - Max load 5 metres |
|
| 5.5m - Max load 8 metres |
|
| 8.5m - Max load 12 metres. NB: Maximum single run length of LED strip - 20 metres. Power additional lengths separately when using a shared power supply. |
|
| 12.5m - Max load 16 metres. NB: Maximum single run length of LED strip - 20 metres. Power additional lengths separately when using a shared power supply. |
|
| 16.5 metres - Max load 20 metres NB: Maximum single run length of LED strip - 20 metres. Power additional lengths separately when using a shared power supply. |
|
| Optional Extras: |
|
Smart controller - Set scenes, dim the strip, turn on/off. |
|
House LED strip in profile - Diffusion of light, heat dissipation & professional finish. |
| Required components |
Soldered 2 core cable tail. Always select the correct cable for your project ensuring efficient current flow & optimal performance. Quick calculation:  1. Multiply the amount of metres of strip by the wattage: e.g. 10m strip (@9.6/m) 10 x 9.6 = 96 watts 2. Now divide 96 by 24 (24v)= 4A 0.5mm cable capacity = 3A 0.75mm cable capacity = 6A 1mm cable capacity = 10A |
SPECIFICATION:
Priced by the metre for a maximum single run length of 20 metres - (If longer run lengths over 20 metres are required, contact us for advice on how best to install this).
LED strip is dispatched as one continuous length as per order quantity -Uncut, unless otherwise stated.
Cut to measure with soldered cable tails- Speak with our team to request a bespoke quotation. Alternatively, leave details and measurements for cut to measure LED strip & required length of soldered cable tails in the special instructions box provided at checkout (remember to select the correct cable & solder operation before completing your order).
Enrich your area with Leading24-pro.
LED Strip for longer run lengths warm
